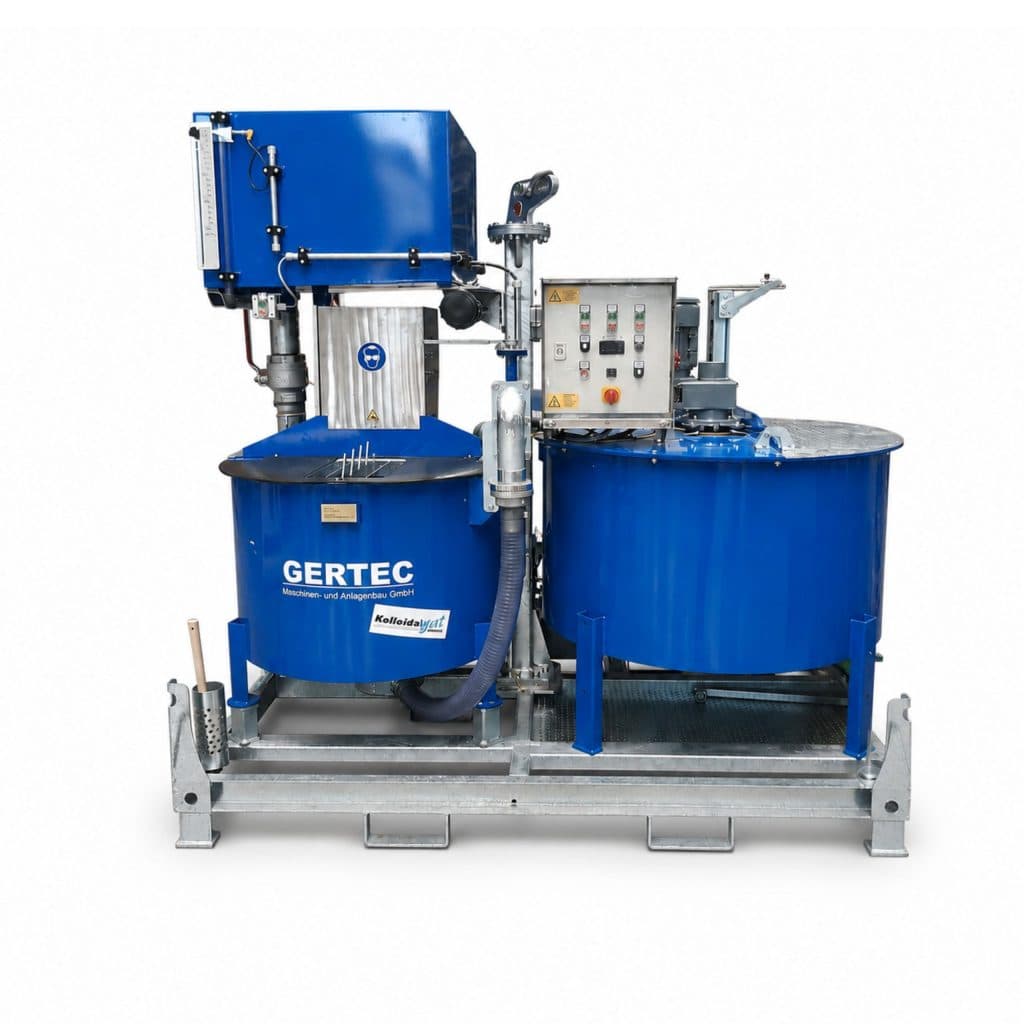

GERTEC Injection Station IS-35-EF-big

The GERTEC IS-35-EF-big combines a mixer, holding tank and pump for preparing and grouting cement, bentonite and suitable filling suspensions. Typical applications are site grouting and filling operations.

The big version increases mixer volume to 280 l and agitated storage to 560 l. A 280 l water tank supports water charging, while the frequency-controlled pump provides continuously adjustable delivery.

Technical features
Mixer working volume	up to 280 l
agitator tank	560 l
Solids particle size	up to 2 mm
Flow rate	0–100 l/min
Discharge pressure	up to 30 bar continuously, 35 bar for short-term operation
Power supply	400 V, 50 Hz, CEE 32 A
The achievable flow rate depends on the medium, suction conditions and back pressure
