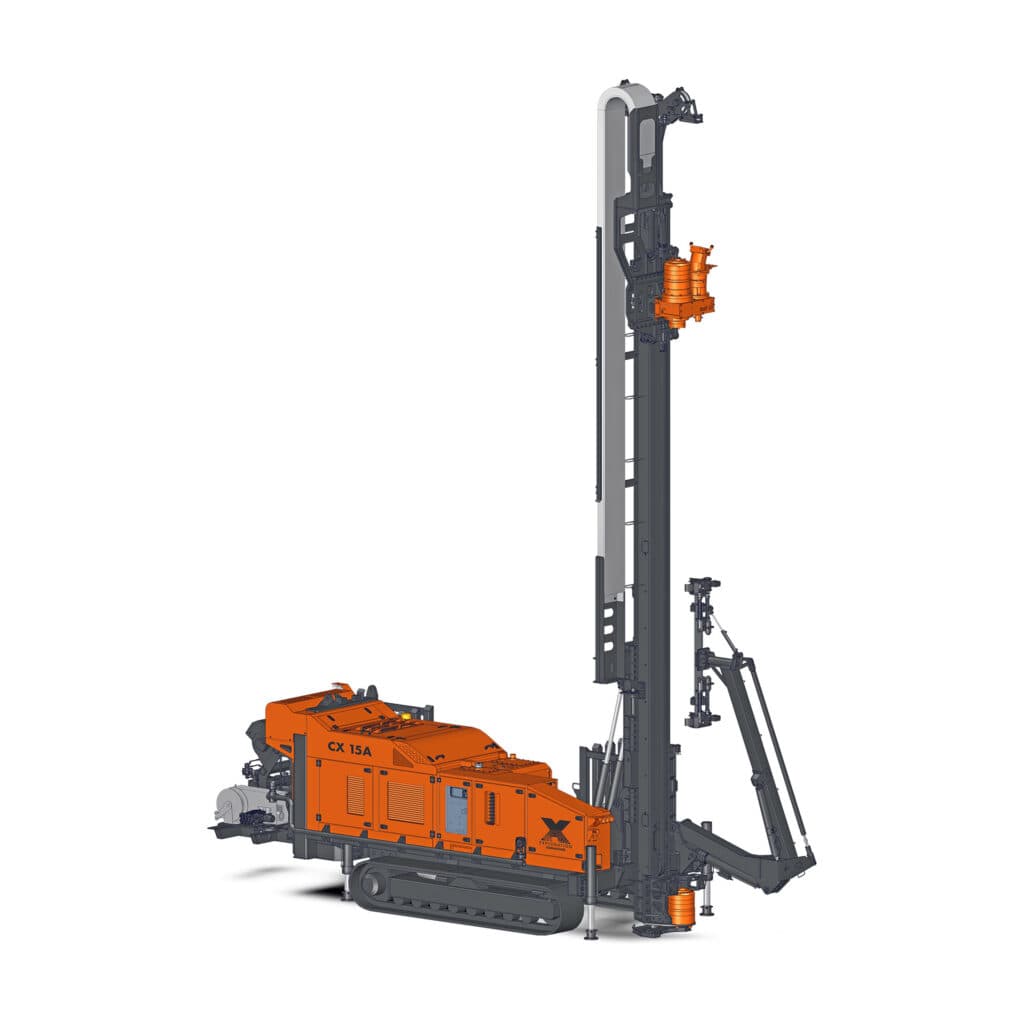

COMACCHIO X CX 15A DD Diamond Core Drill Rig
COMACCHIO CX 15A DD is an exploration rig for diamond core drilling. The method recovers continuous rock cores for geological investigation. Controlled rotation and feed support the coring process; the barrel, rods and drilling fluid are selected for the formation and required sample diameter.
The CX 15A DD combines a long feed stroke with high rotational speed. It is a distinct configuration within the CX 15 capacity class for diamond coring.
| Technical data | |
|---|---|
| Diesel engine power | 119–140 kW |
| Pullback force | 15,000 daN |
| Feed stroke | 6,000 mm |
| Maximum torque | 8,350 Nm |
| Maximum rotation speed | 1,500 rpm |
Performance and dimensional ranges cover different versions. The drilling method, head and auxiliary equipment determine the specific machine configuration.
