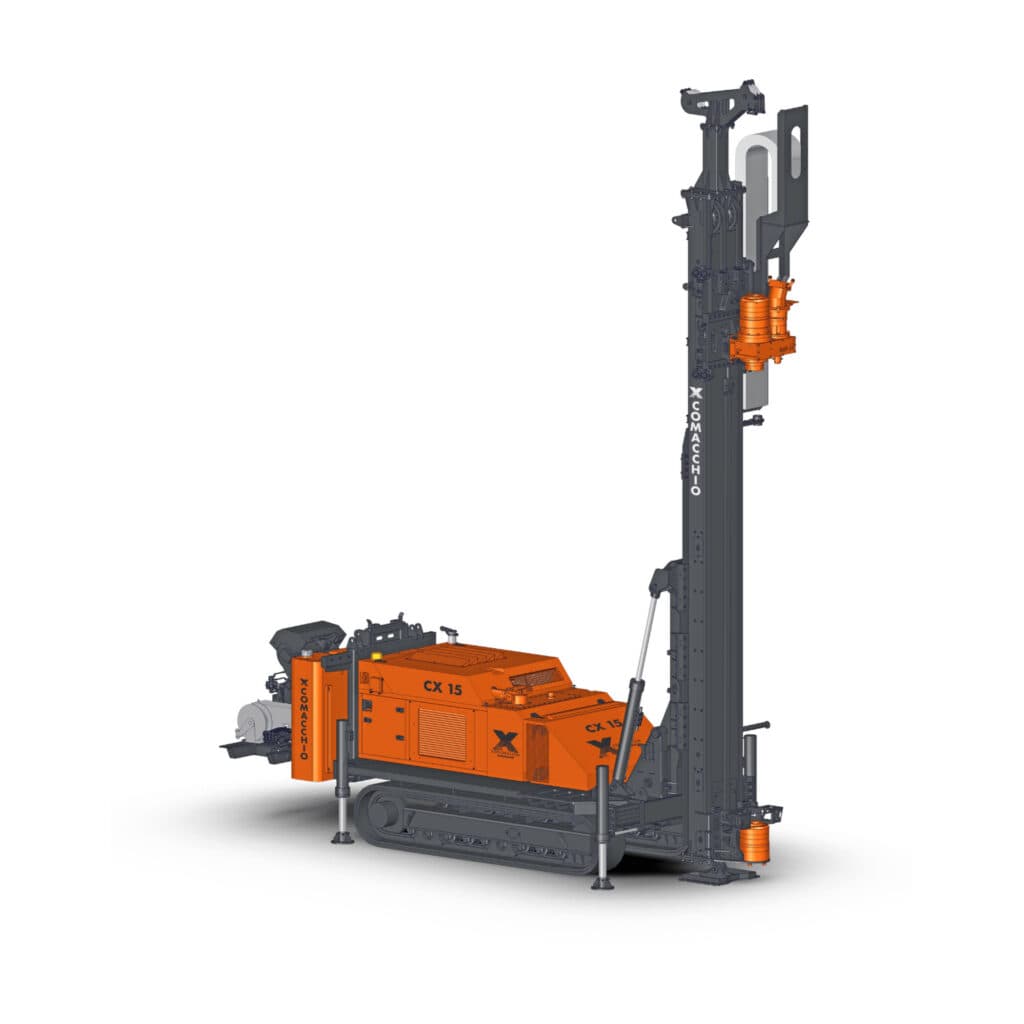

COMACCHIO X CX 15 DD Diamond Core Drill Rig
COMACCHIO CX 15 DD is an exploration rig for diamond core drilling. The method recovers continuous rock cores for geological investigation. Controlled rotation and feed support the coring process; the barrel, rods and drilling fluid are selected for the formation and required sample diameter.
The CX 15 DD provides greater pullback force and torque than the CX 12 DD. Different feed strokes allow adaptation to the intended rod length.
| Technical data | |
|---|---|
| Diesel engine power | 168–180 kW |
| Pullback force | 15,000 daN |
| Feed stroke | 4,000–5,000 mm |
| Maximum torque | 15,200 Nm |
| Maximum rotation speed | 1,250 rpm |
Performance and dimensional ranges cover different versions. The drilling method, head and auxiliary equipment determine the specific machine configuration.
