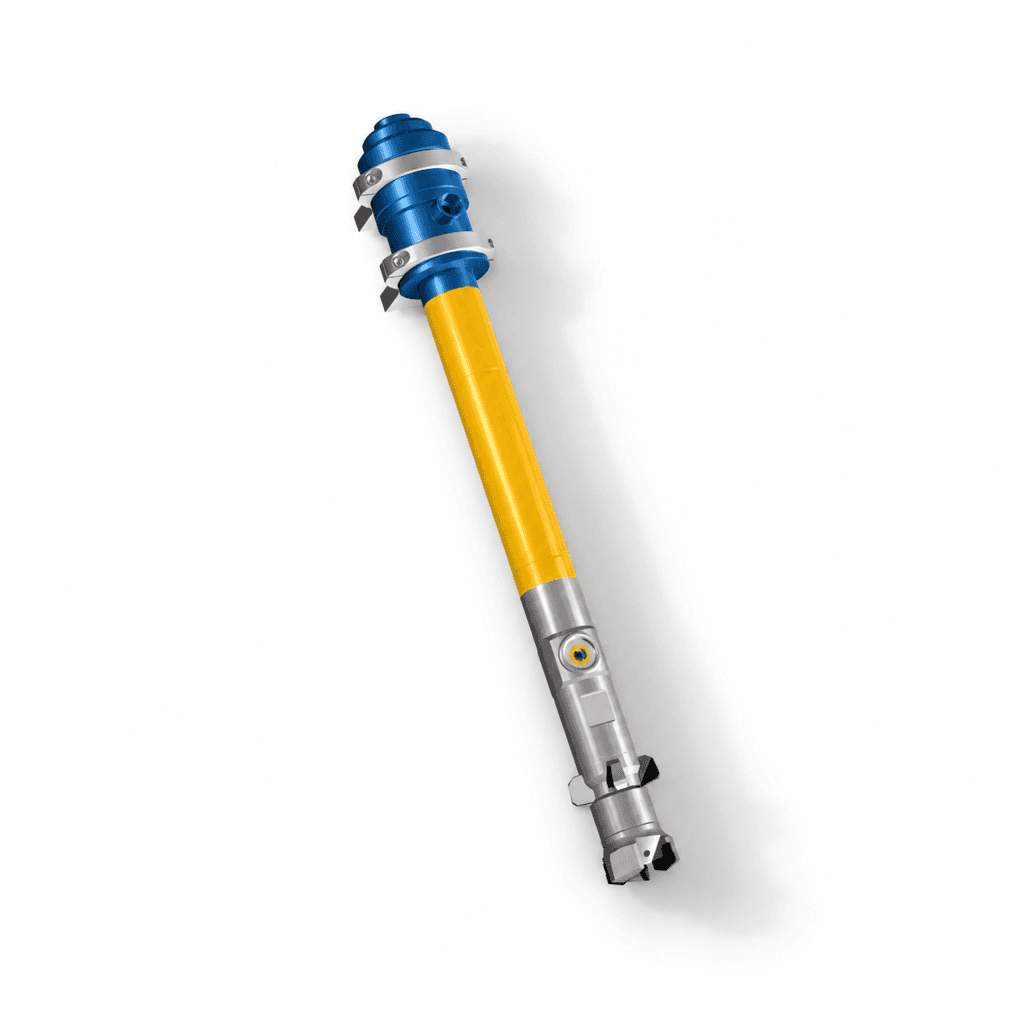

SYSBOHR Duplex Jet Grouting Drilling System D 76.1-114.3 mm with Rotary Head and Hydraulic Chuck

Double-fluid jet grouting with an air-shrouded cement grout jet for granular and cohesive soils. The air shroud increases jet reach. Separate rod passages carry grout and air to the monitor; withdrawal and rotation form the soil-cement body.

Technical data
System diameter	76.1–114.3 mm
Drive	Rotary head with hydraulic chuck
Rod lengths	500–6000 mm
Jet grouting media	Cement grout and air
Jet pressure (process-dependent)	100–approx. 600 bar
Jet grouting nozzle diameter	2–8.5 mm

Detailed technical information can be found on the manufacturer’s product page.

Manufacturer Link

Documents

SYSBOHR Doppel-HDI-Bohrsystem D 76,1–114,3 mm mit Drehkopf und Spannfutter – Datenblatt
