GERTEC Injection Station IS-35-EF-NB-300

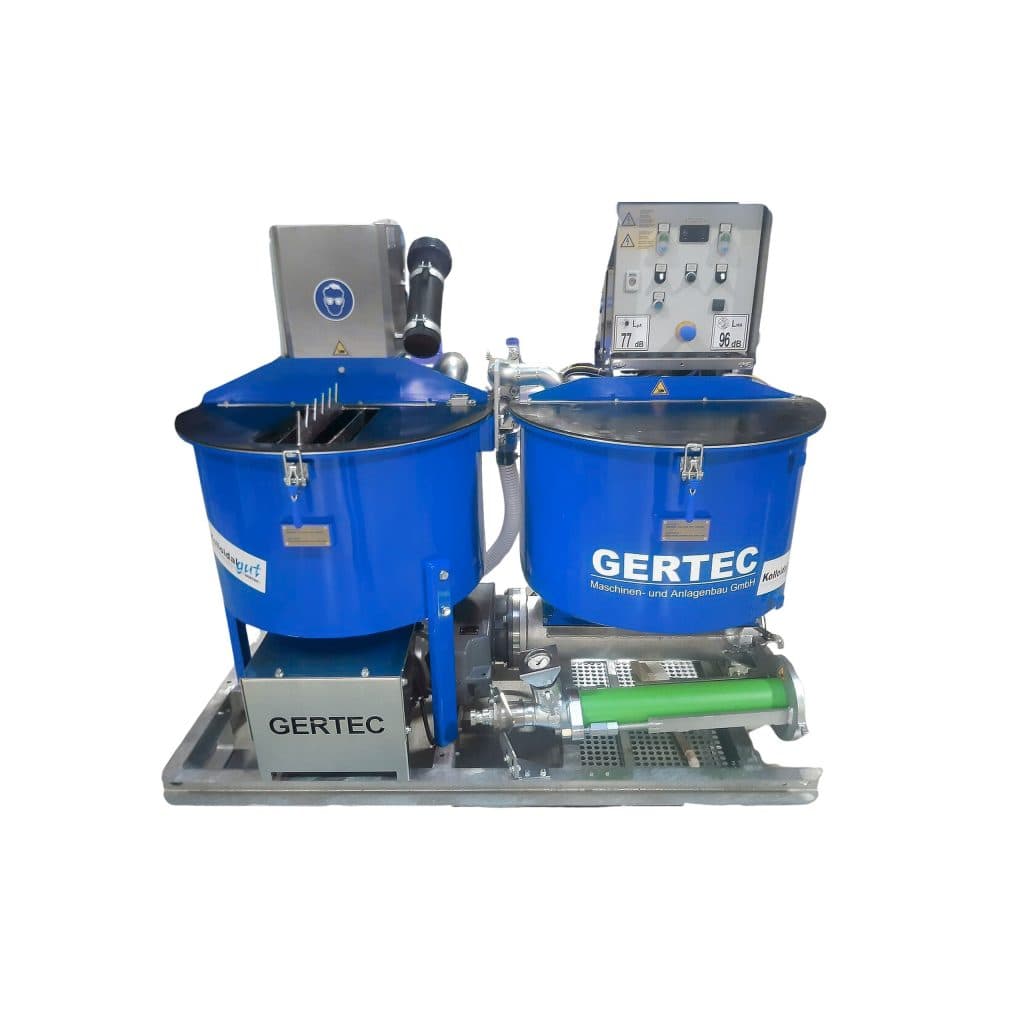

The GERTEC IS-35-EF-NB-300 combines a mixer, holding tank and pump for preparing and grouting cement, bentonite and suitable filling suspensions. Typical applications are site grouting and filling operations.

The frequency-controlled pump provides continuously adjustable delivery. Continuous-duty discharge pressure is up to 40 bar; the higher 50 bar limit applies only to short-term operation.

Technical features
Mixer working volume	up to 150 l
holding tank	300 l
Solids particle size	up to 2 mm
Flow rate	0–50 l/min
Maximum continuous-duty discharge pressure	40 bar
Maximum short-term discharge pressure	50 bar
Power supply	400 V, 50 Hz, CEE 32 A
The achievable flow rate depends on the medium, suction conditions and back pressure
