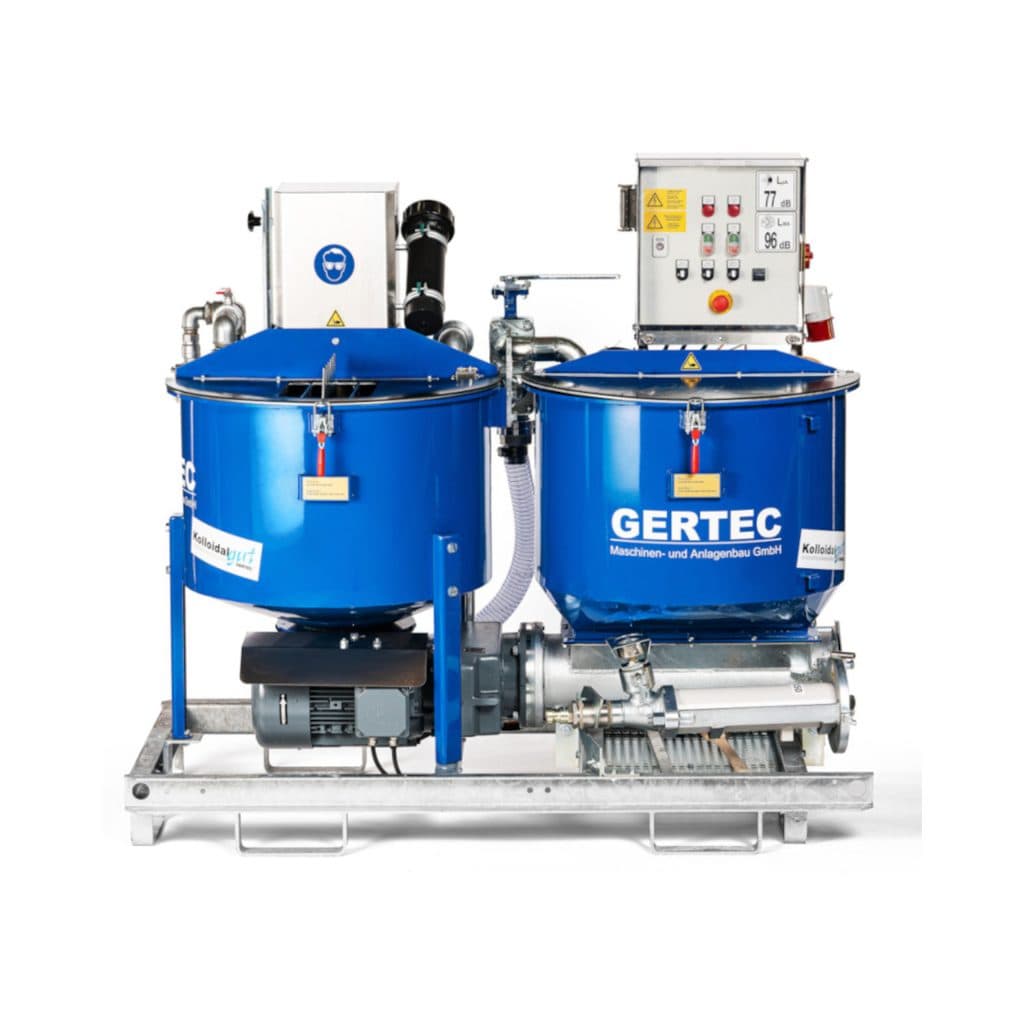

GERTEC Injection Station IS-35-E-NB-300-RW

The GERTEC IS-35-E-NB-300-RW combines a mixer, holding tank and pump for preparing and grouting cement, bentonite and suitable filling suspensions. Typical applications are site grouting and filling operations.

The RW version keeps the 300 l stock in motion with an agitator. This helps maintain the uniformity of settling suspensions between mixing and grouting.

Technical features
Mixer working volume	up to 150 l
agitator tank	300 l
Solids particle size	up to 2 mm
Flow rate	32 / 65 l/min
maximum discharge pressure	50 bar
Power supply	400 V, 50 Hz, CEE 32 A
The achievable flow rate depends on the medium, suction conditions and back pressure
