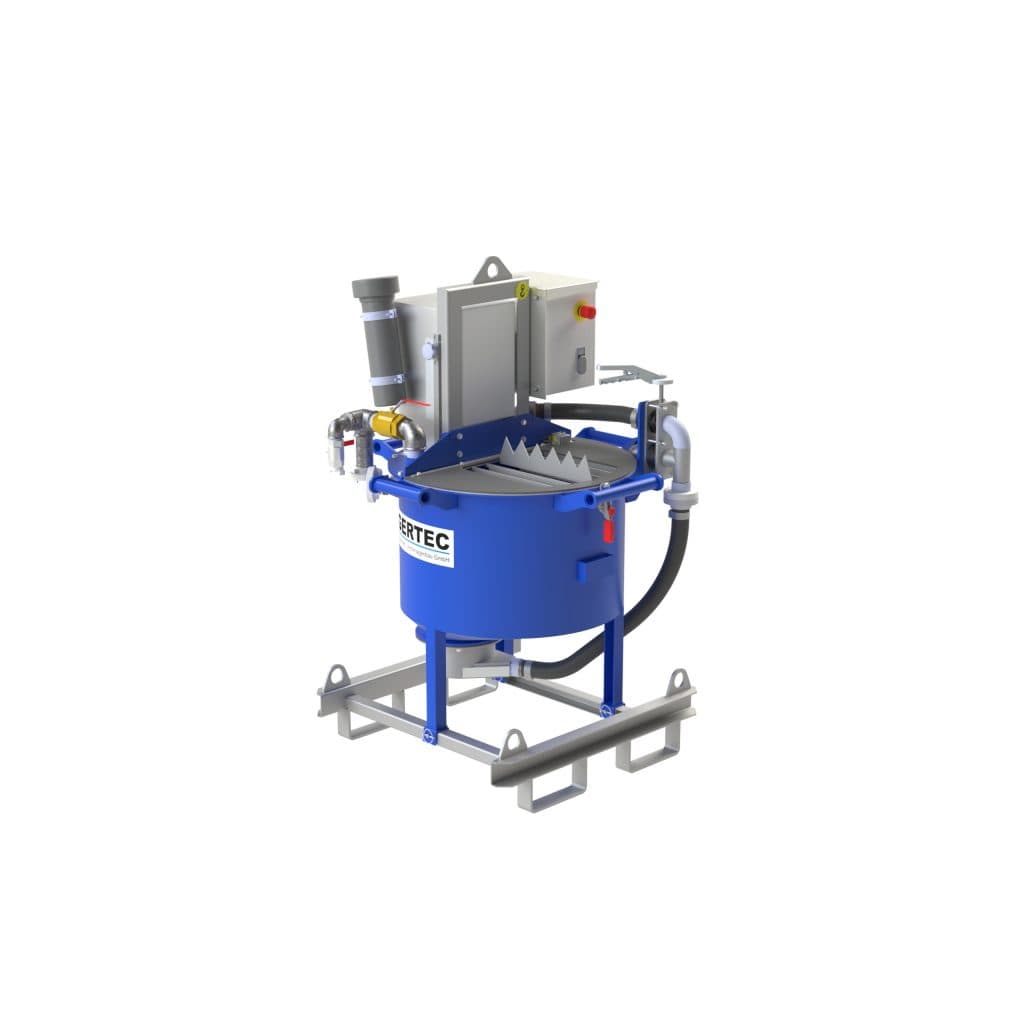

GERTEC Batch Mixer CM-100-E

The GERTEC CM-100-E prepares cement and bentonite suspensions and suitable filling grouts. Typical duties include material preparation for anchor and ground grouting, drilling fluids and geothermal borehole annulus filling.

The 100 l mixer is intended for smaller material batches. Manual bag feeding and the 3 kW drive support local suspension preparation on site.

Technical features
Mixer working volume	100 l
minimum mixing water quantity	30 l
Mixing output	2.0 m³/h at 20 batches/h
Manual solids feeding through a bag loading grid; particle size up to 2 mm
400 V, 50 Hz; CEE 16 A; power input 3.0 kW
