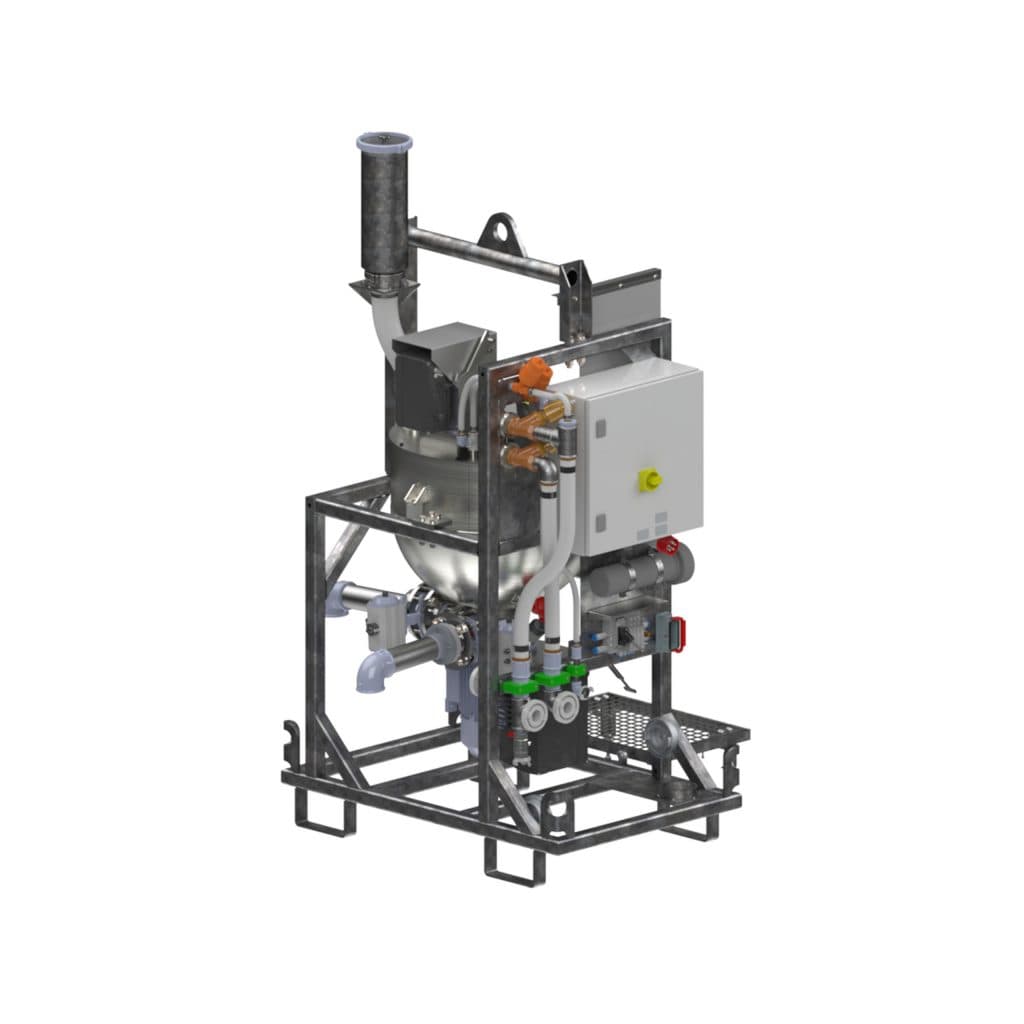

GERTEC Automatic Batch Intensive Mixer CIM-100-EA

Machines and Drilling Rigs
Featured media

The GERTEC CIM-100-EA prepares binder suspensions in automatically metered batches. Its component arrangement accommodates fresh and recycled water, two solids and one liquid admixture.

Water and silo-fed solids are metered using the mixer weighing system. The liquid admixture is metered volumetrically. Bag feeding requires conversion to a bag loading grid and is separate from silo operation.

Technical features
Working volume40–100 l; mixing output 1.0 m³/h at 10 batches/h
Two DN 65 outlets with pneumatic butterfly valves
Solids particle sizeup to 2 mm
compressed air supply6 bar
Power supply400 V, 50 Hz, CEE 16 A
power input6 kW
