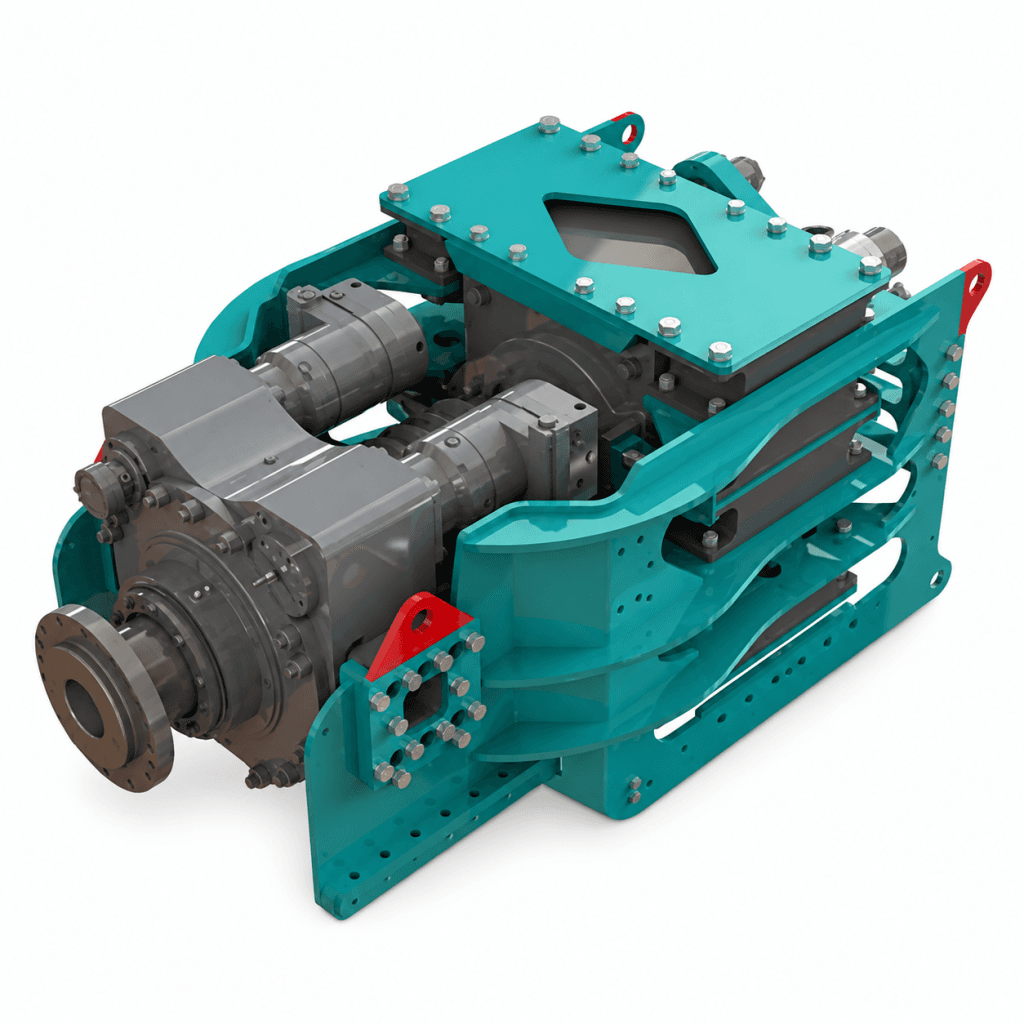

EURODRILL RHV 2400 Vibration Head
The EURODRILL RHV2400 combines rotation and vibration for overburden and casing drilling. The optional VMS system axially decouples the inner string, directing vibration into the casing while allowing a DTH hammer to operate on the inner string.
| Equipment and technical features | |
|---|---|
| HP67 | up to 24 kNm at 31 rpm |
| HP48 | up to 132 rpm at 5.7 kNm |
| Vibration | 60 Hz, centrifugal force 160 kN |
| Weight | 1480 kg |
| permissible pull force | 160 kN |
