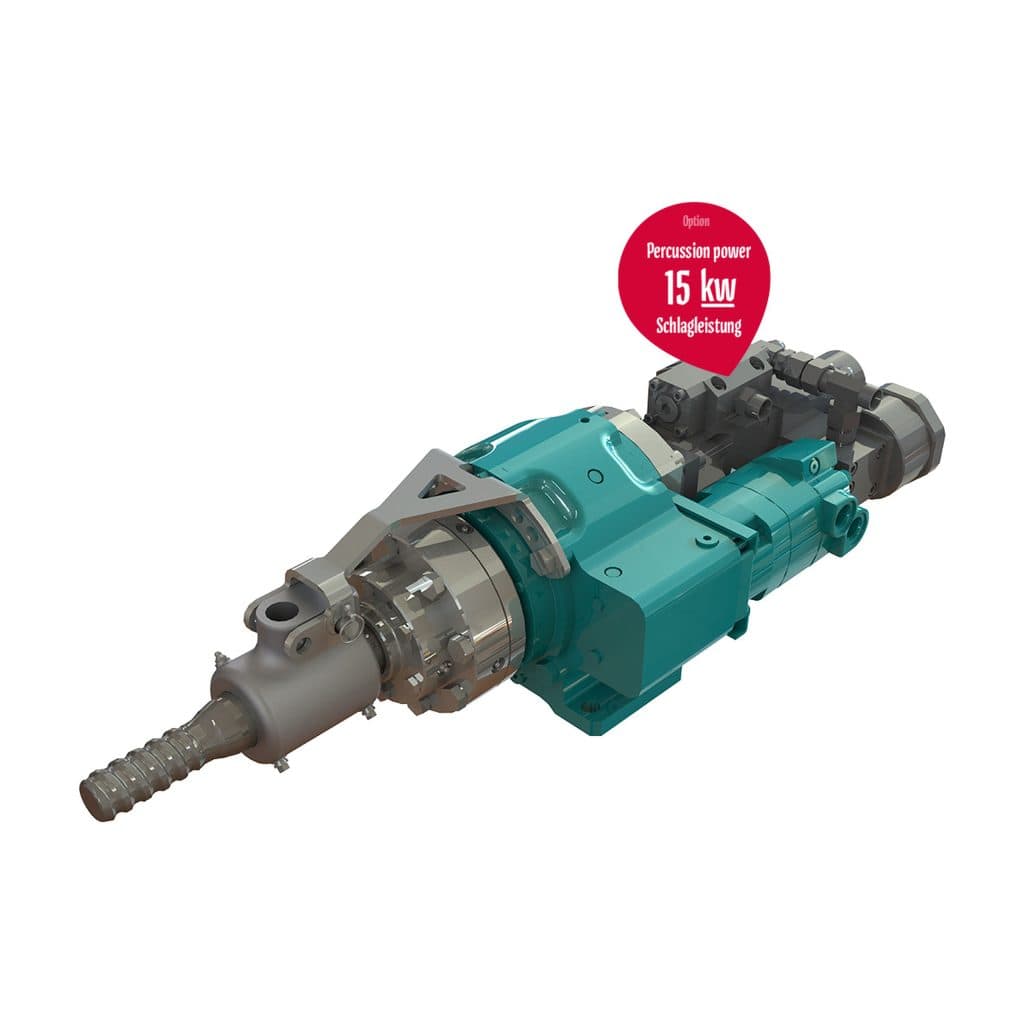

EURODRILL RH3X X-Series Drilling Drive
The EURODRILL RH3X is an X-series drilling head that transmits torque to the drill string. Its gearbox, tool connection and flushing arrangement define how the head is integrated into the drilling system. With the appropriate hydraulic percussion unit, the head is used for rotary-percussive drilling; the rotation-only version serves rotary drilling.
| Equipment and technical features | |
|---|---|
| Shank adapter options include H55/H64 and R32, R38, R51, T38 and T45 | |
| Listed percussion unit versions | type 20 and ED15 |
| Single-speed rotary gearbox; motor types 103 and 105 | |
| Weight depending on configuration | 95–165 kg |
| Permissible pull force depending on configuration | 100 kN |
Detailed technical information can be found on the manufacturer’s product page.
