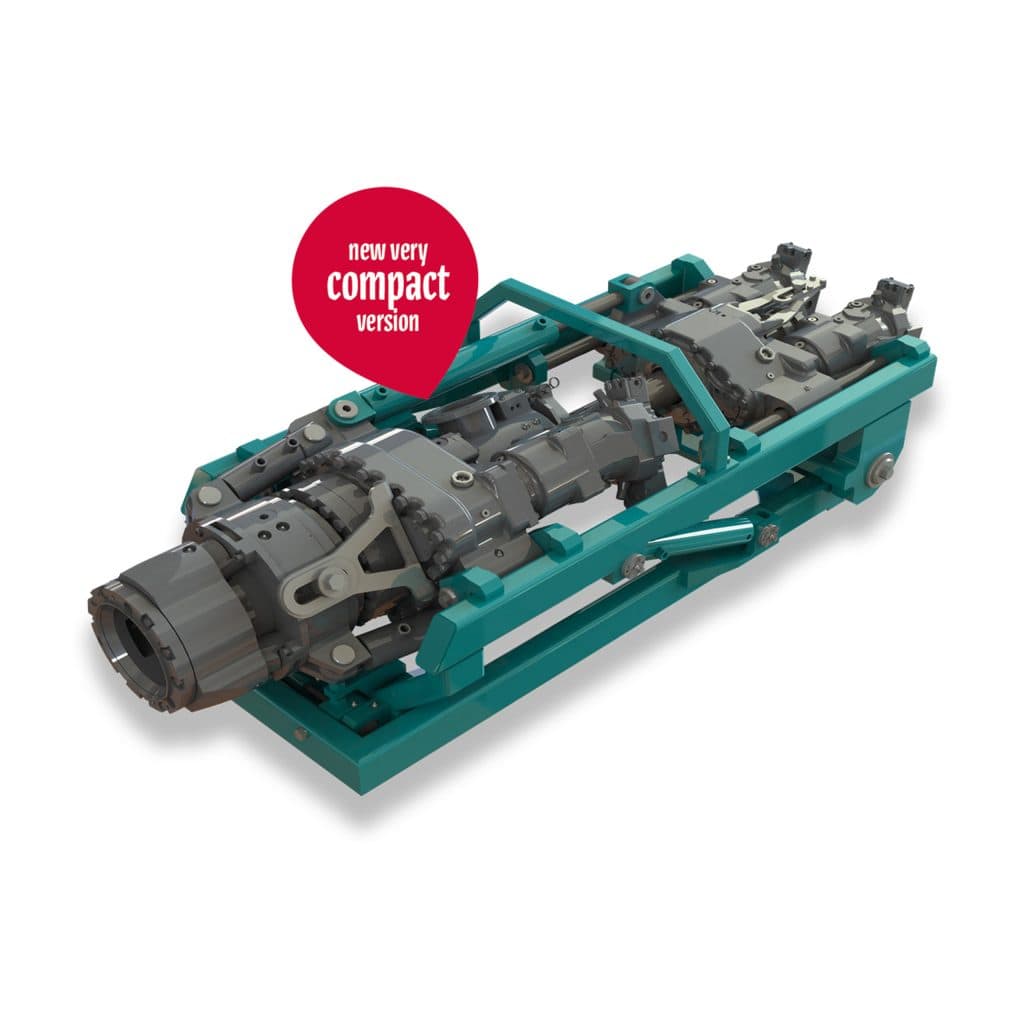

EURODRILL DH26GT Double Head Drilling Attachment
The EURODRILL DH26GT uses separate gearboxes to drive the casing and inner drill string. This arrangement supports cased drilling methods in which the outer casing and inner string perform different drive functions.
| Equipment and technical features | |
|---|---|
| Casing drive | RH26 |
| inner string drive | RH12 |
| SK178 hydraulic chuck | clamping range up to 178 mm, maximum 200 rpm and 33 kNm |
| Weight depending on configuration | 1100 kg |
| Permissible pull force depending on configuration | 220 kN |
Detailed technical information can be found on the manufacturer’s product page.
