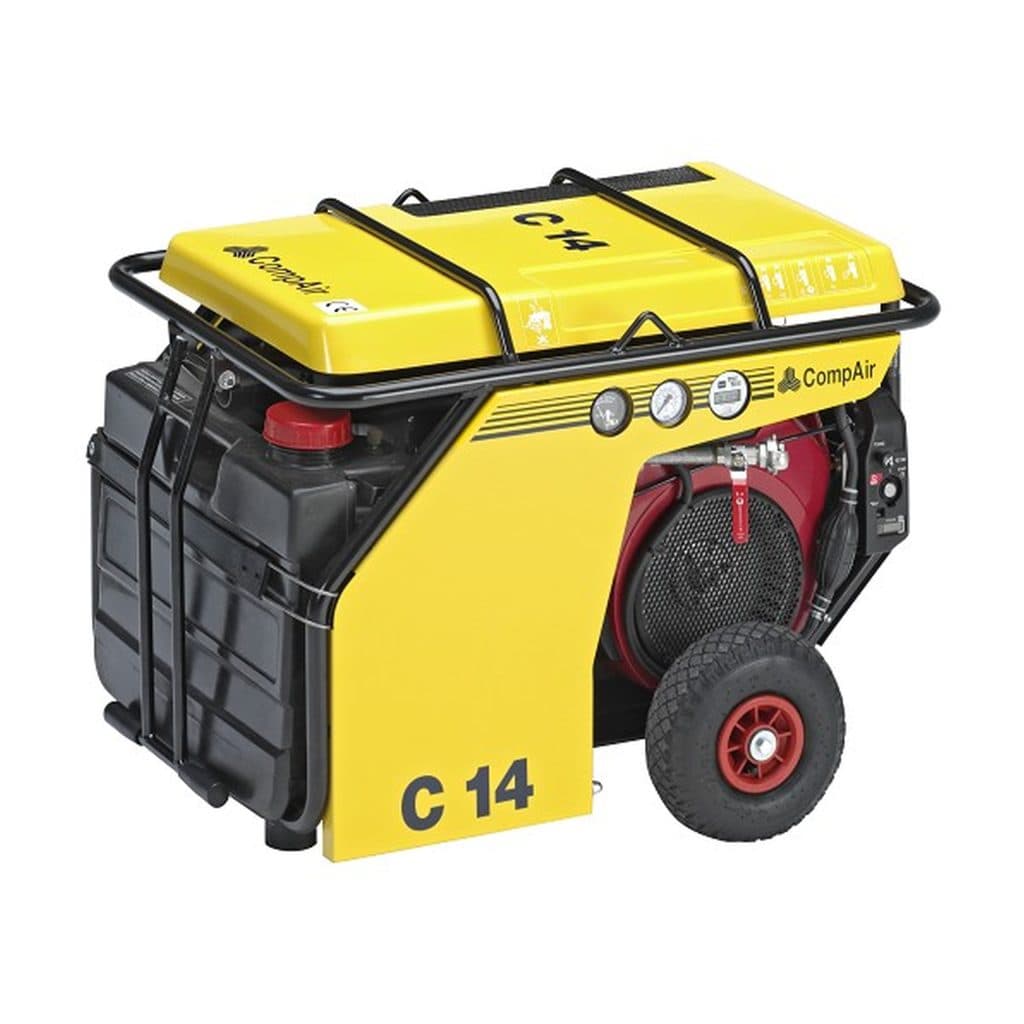

CompAir C14 – Hand-portable wheeled compressor
The CompAir C14 is a hand-portable wheeled compressor with 15.5 kW engine power. It delivers 1.4 m³/min at 7 bar gauge pressure, allowing selection to match the compressed-air demand on site.
The air-cooled Honda petrol engine operates independently of an external power supply. Transport wheels, a folding pull handle and surrounding handles make relocation easier. Its compact design suits pneumatic tools whose air demand and working pressure match the selected model.
| Technical data | |
|---|---|
| Series | DLT 0101 |
| Volume flow in data table | 1.4 m³/min |
| Operating gauge pressure | 7 bar |
| Installed motor / engine power | 15.5 kW |
| Motor / engine | Honda GX 630 |
| Cylinders | 2 |
| Cooling system | Air cooling |
| Idle–full-load speed | 2200–2900 min⁻¹ |
| Fuel tank | 20 l |
| Operating weight | 165 kg |
| Dimensions L × W × H | 890 × 635 × 670 mm |
| Compressed-air outlets | 1 × 3/4″ |
| Sound pressure level LpA in data sheet | 69 dB(A) |
Operating weight includes fluids and battery but excludes options. A separate aftercooler with condensate separator is available as an option.
