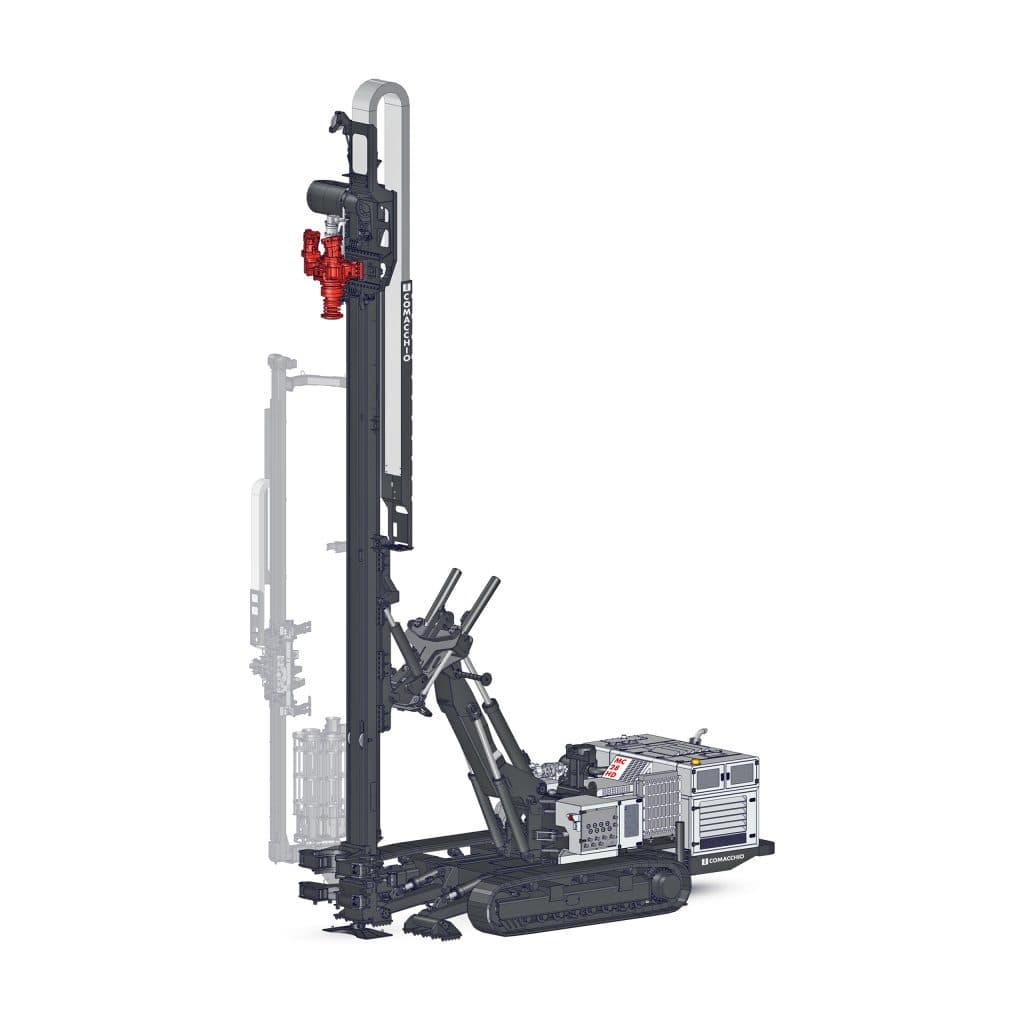

COMACCHIO MC 28 HD Heavy-Duty Multipurpose Drilling Rig

The COMACCHIO MC 28 HD combines an adjustable track width with a reinforced undercarriage. For demanding anchor drilling, it can carry a double-head system and a rod-and-casing carousel. Single-head configurations and hydraulic drifters provide further equipment choices.

Technical data from the current manufacturer page
Engine power	225 kW
Retract force	14 000 daN
Feed force	14 000 daN
Mast feed stroke	8 130–10 830 mm
Torque range	2 050–5 000 daNm
Rotation speed range	100–210 min⁻¹
Clamping range	85–530 mm
Weight range	27–30 t

Values depend on configuration and equipment.
