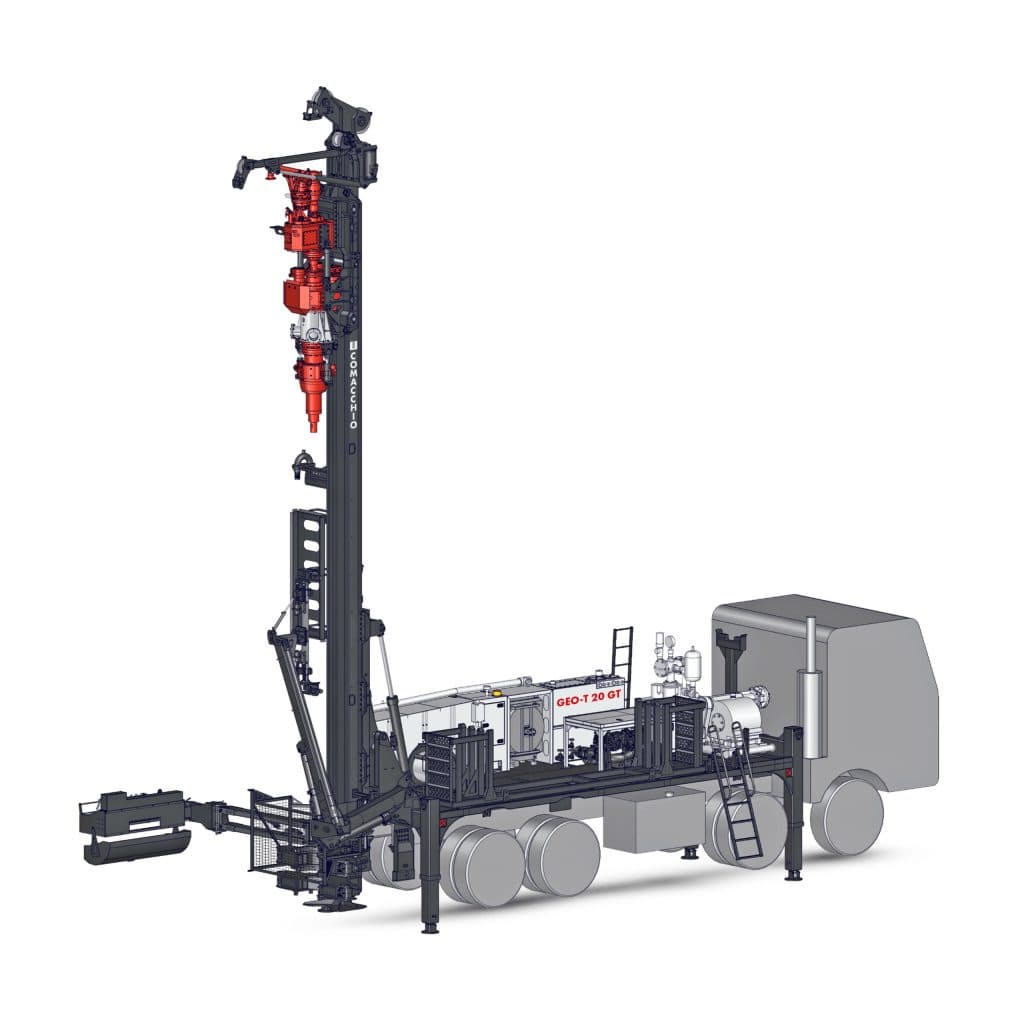

COMACCHIO GEO-T 20 GT Truck-Mounted Geothermal Drill Rig with Double Head System

COMACCHIO GEO-T 20 GT is a dual-head rig for geothermal drilling. Separate drives operate the inner drill string and outer casing, allowing the borehole to be cased as drilling progresses. Equipment is selected for the required diameter, geology and flushing method.

The GEO-T 20 GT is truck-mounted, combining dual-head drilling with road mobility. Different chassis configurations and mast lengths allow a project-specific layout.

Technical data
Diesel engine power	147–168 kW
Pullback force	19,500 daN
Feed force	10,000 daN
Feed stroke	4,000–5,000 mm
Clamping range	45–365 mm

Performance and dimensional ranges cover different versions. The drilling method, head and auxiliary equipment determine the specific machine configuration.

Detailed technical information can be found on the manufacturer’s product page.

Manufacturer Link

Documents

COMACCHIO GEO-T 20 GT Doppelkopf-Bohrgerät – Datenblatt
