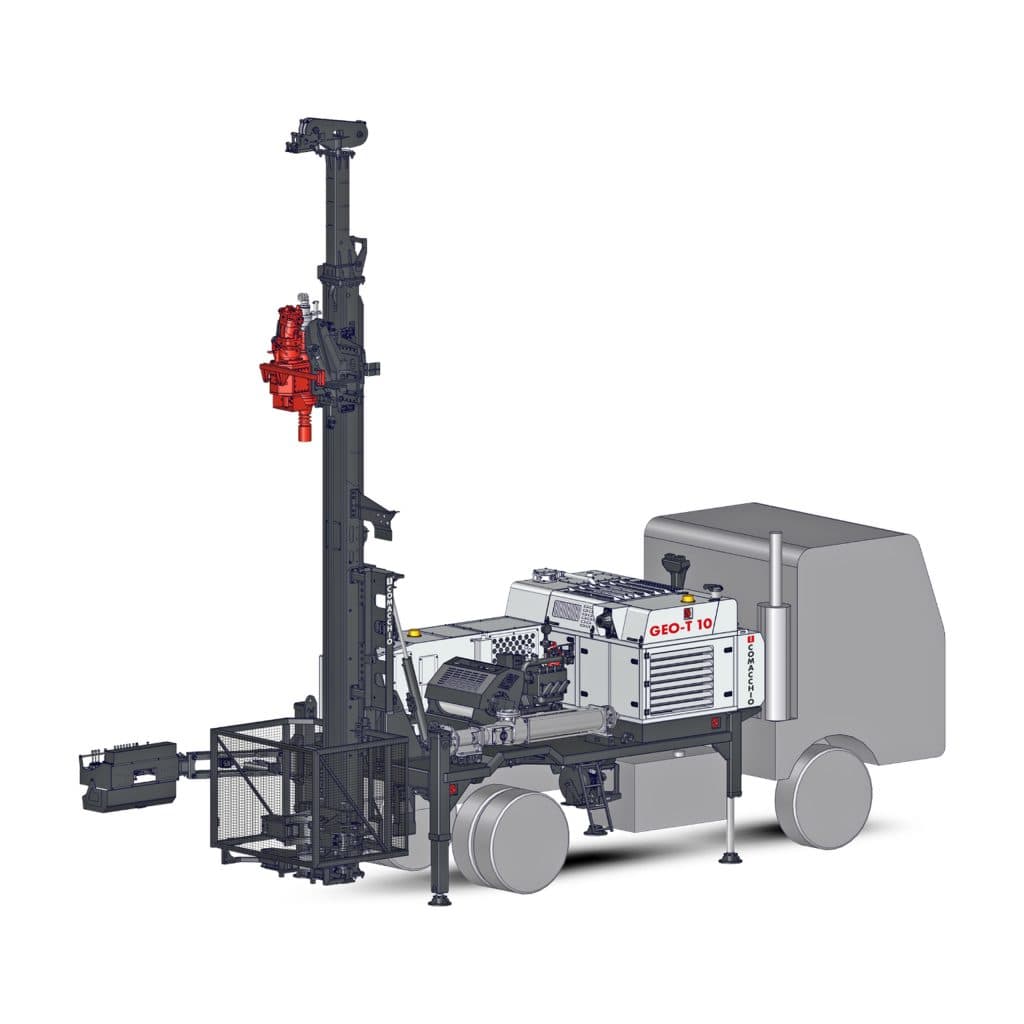

COMACCHIO GEO-T 10 Truck-Mounted Geotechnical Investigation Drill Rig

COMACCHIO GEO-T 10 is a drilling rig for geotechnical and environmental investigation. Different sampling and drilling methods can be used according to the head and auxiliary equipment fitted. Ground conditions, the required sample and the investigation objective determine the drilling method.

The GEO-T 10 provides a truck-mounted platform for a broad range of coring and mud rotary work. DTH and RC methods are supported with the corresponding auxiliary equipment.

Technical data
Diesel engine power	119–140 kW
Pullback force	9,000 daN
Feed stroke	4,000 mm
Torque range	835–1,300 daNm
Clamping range	45–365 mm

Performance and dimensional ranges cover different versions. The drilling method, head and auxiliary equipment determine the specific machine configuration.

Detailed technical information can be found on the manufacturer’s product page.

Manufacturer Link

Documents

COMACCHIO GEO-T 10 LKW-Bohrgerät – Datenblatt
