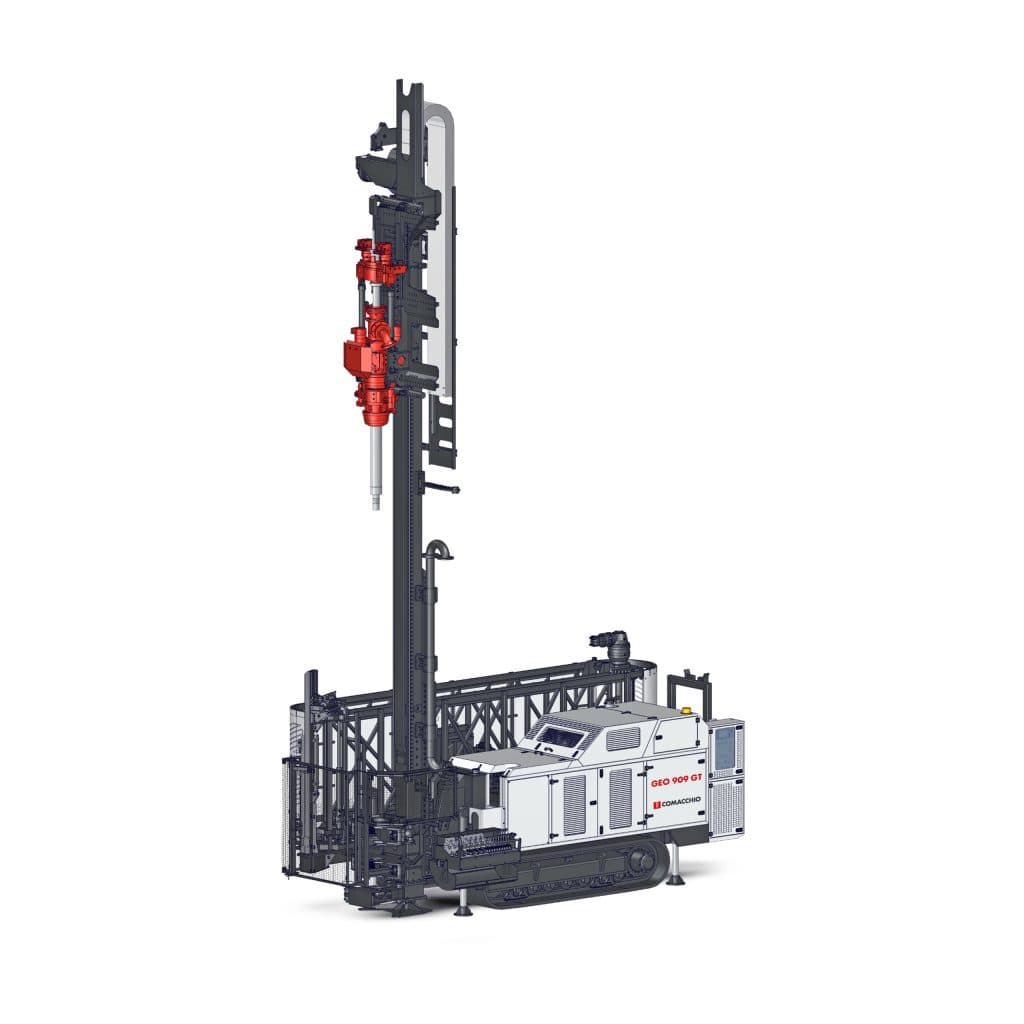

COMACCHIO GEO 909 GT Geothermal Drill Rig with Double Head System
COMACCHIO GEO 909 GT is a dual-head rig for geothermal drilling. Separate drives operate the inner drill string and outer casing, allowing the borehole to be cased as drilling progresses. Equipment is selected for the required diameter, geology and flushing method.
The GEO 909 GT has an integrated automatic magazine for 2 m elements. It is designed for 89 mm rods and 140–152 mm casings; these magazine dimensions determine the tooling selection.
| Technical data | |
|---|---|
| Diesel engine power | 147–180 kW |
| Pullback force | 14,500–19,500 daN |
| Feed force | 5,000–10,000 daN |
| Feed stroke | 5,200 mm |
| Clamping range | 85–200 mm |
Performance and dimensional ranges cover different versions. The drilling method, head and auxiliary equipment determine the specific machine configuration.
