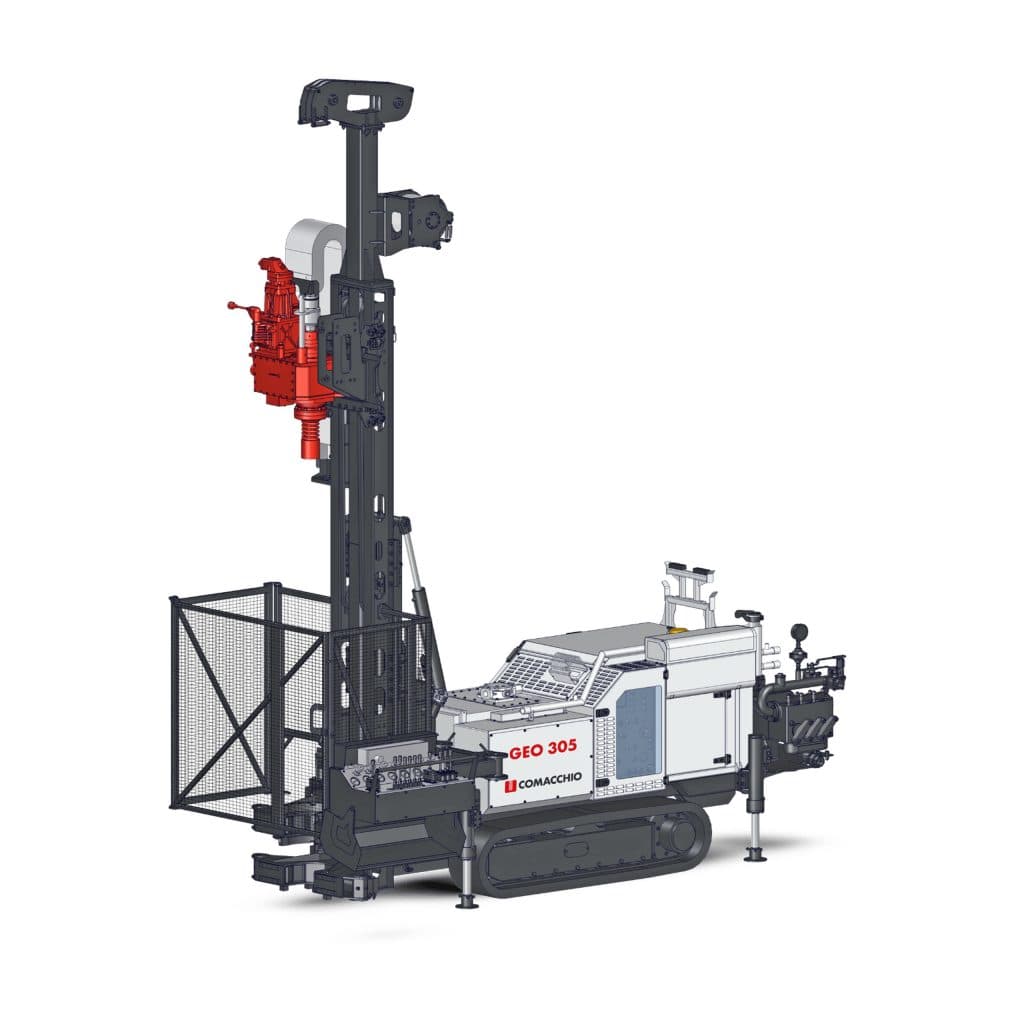

COMACCHIO GEO 305 Geotechnical Investigation Drill Rig
COMACCHIO GEO 305 is a drilling rig for geotechnical and environmental investigation. Different sampling and drilling methods can be used according to the head and auxiliary equipment fitted. Ground conditions, the required sample and the investigation objective determine the drilling method.
The GEO 305 can be equipped for conventional and wireline coring as well as DTH drilling. Its variable feed stroke also supports the installation of groundwater monitoring wells.
| Technical data | |
|---|---|
| Diesel engine power | 55.4 kW |
| Pullback force | 3,500–5,000 daN |
| Feed stroke | 1,600–3,600 mm |
| Torque range | 280–900 daNm |
| Clamping range | 45–305 mm |
Performance and dimensional ranges cover different versions. The drilling method, head and auxiliary equipment determine the specific machine configuration.
