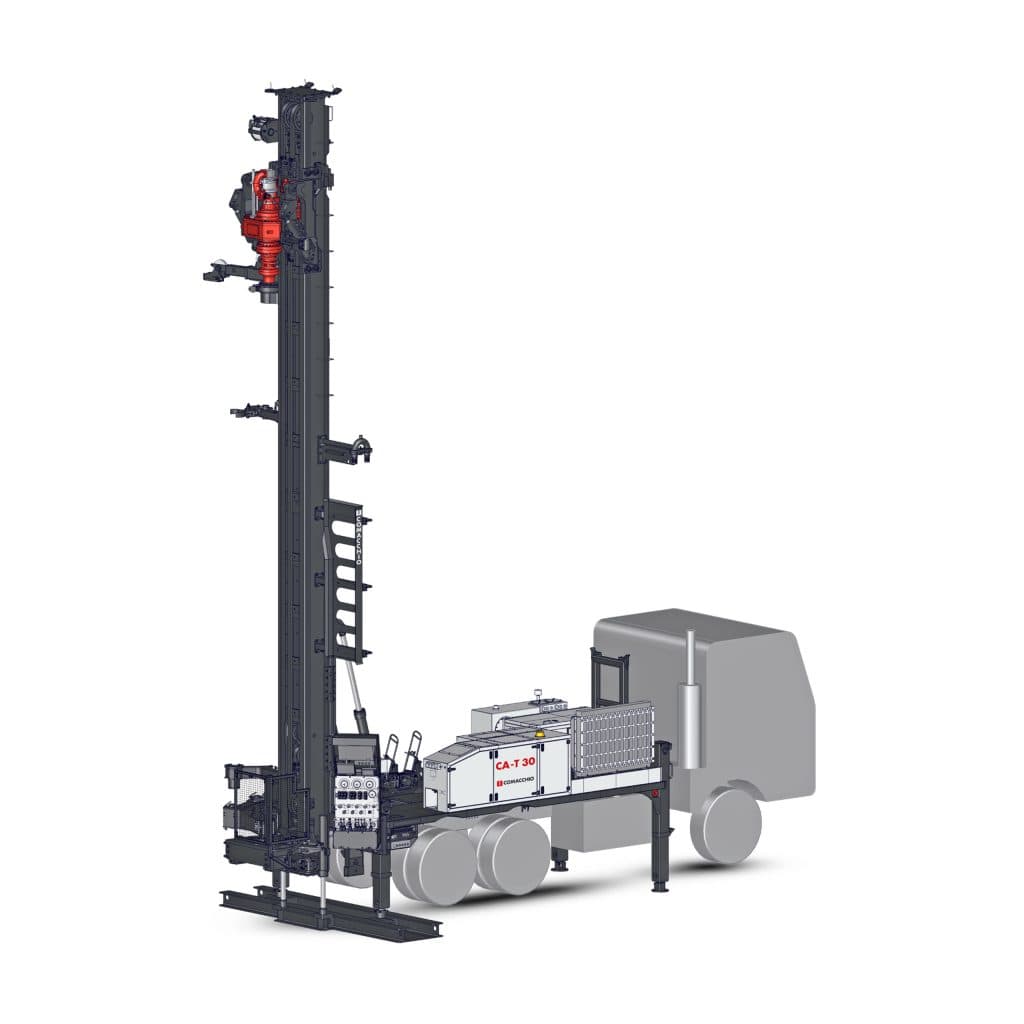

COMACCHIO CA-T 30 Truck-Mounted Water Well Drill Rig
COMACCHIO CA-T 30 is a water well drilling rig. Depending on the ground and equipment, it supports rotary drilling with direct water or mud circulation and down-the-hole drilling. Pumps, the rotary head and rod handling can be configured for the project.
The CA-T 30 is designed for deep water wells on heavy truck chassis. High pullback force, RC options and high-capacity flushing equipment define its application class.
| Technical data | |
|---|---|
| Diesel engine power | 245 kW |
| Pullback force | 30,000 daN |
| Feed stroke | 7,000 mm |
| Torque range | 900–3,100 daNm |
| Clamping range | 60–520 mm |
Performance and dimensional ranges cover different versions. The drilling method, head and auxiliary equipment determine the specific machine configuration.
Detailed technical information can be found on the manufacturer’s product page.
