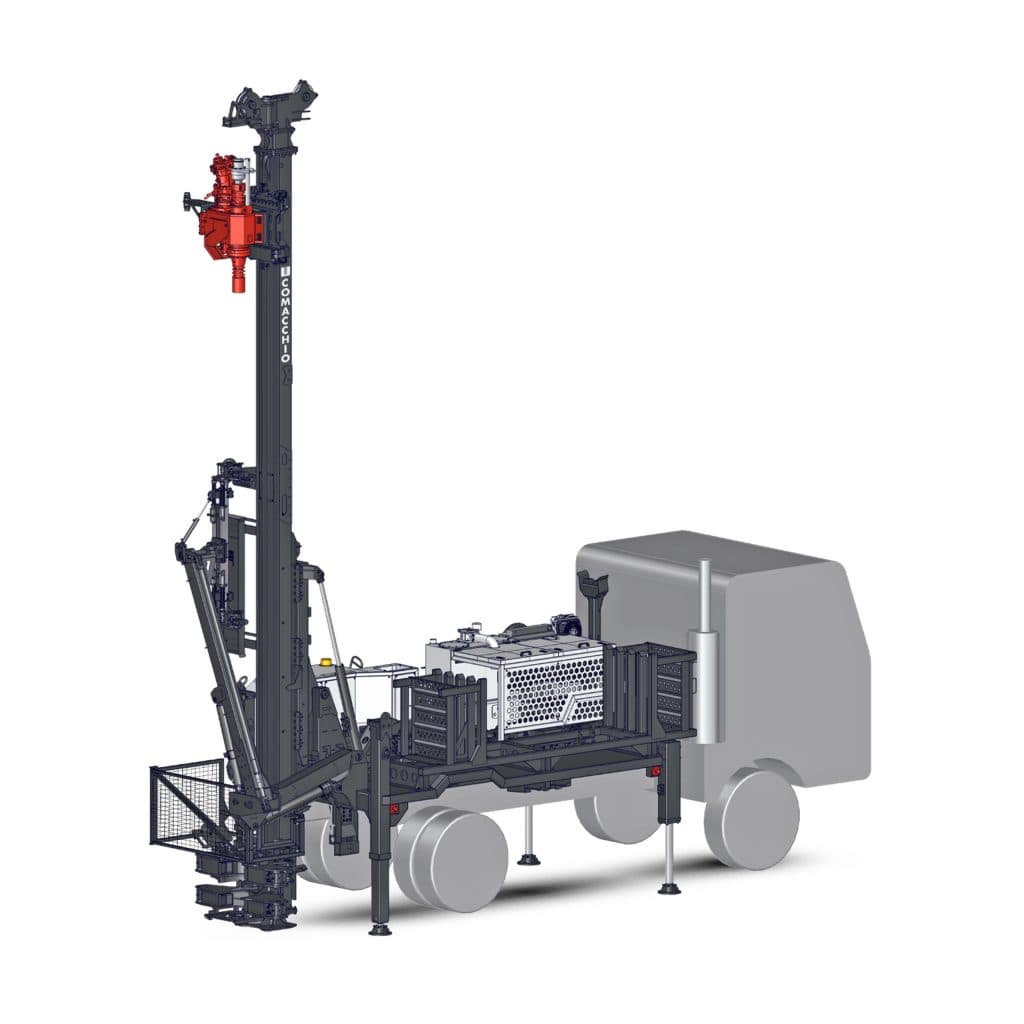

COMACCHIO CA-T 10 Truck-Mounted Water Well Drill Rig
COMACCHIO CA-T 10 is a water well drilling rig. Depending on the ground and equipment, it supports rotary drilling with direct water or mud circulation and down-the-hole drilling. Pumps, the rotary head and rod handling can be configured for the project.
The CA-T 10 combines water well equipment with a compact truck-mounted layout. Frequent mobilisation and integrated arrangement of operating equipment are central to this model.
| Technical data | |
|---|---|
| Diesel engine power | 119–140 kW |
| Pullback force | 9,000 daN |
| Feed stroke | 4,000 mm |
| Torque range | 1,300–2,000 daNm |
| Clamping range | 45–365 mm |
Performance and dimensional ranges cover different versions. The drilling method, head and auxiliary equipment determine the specific machine configuration.
