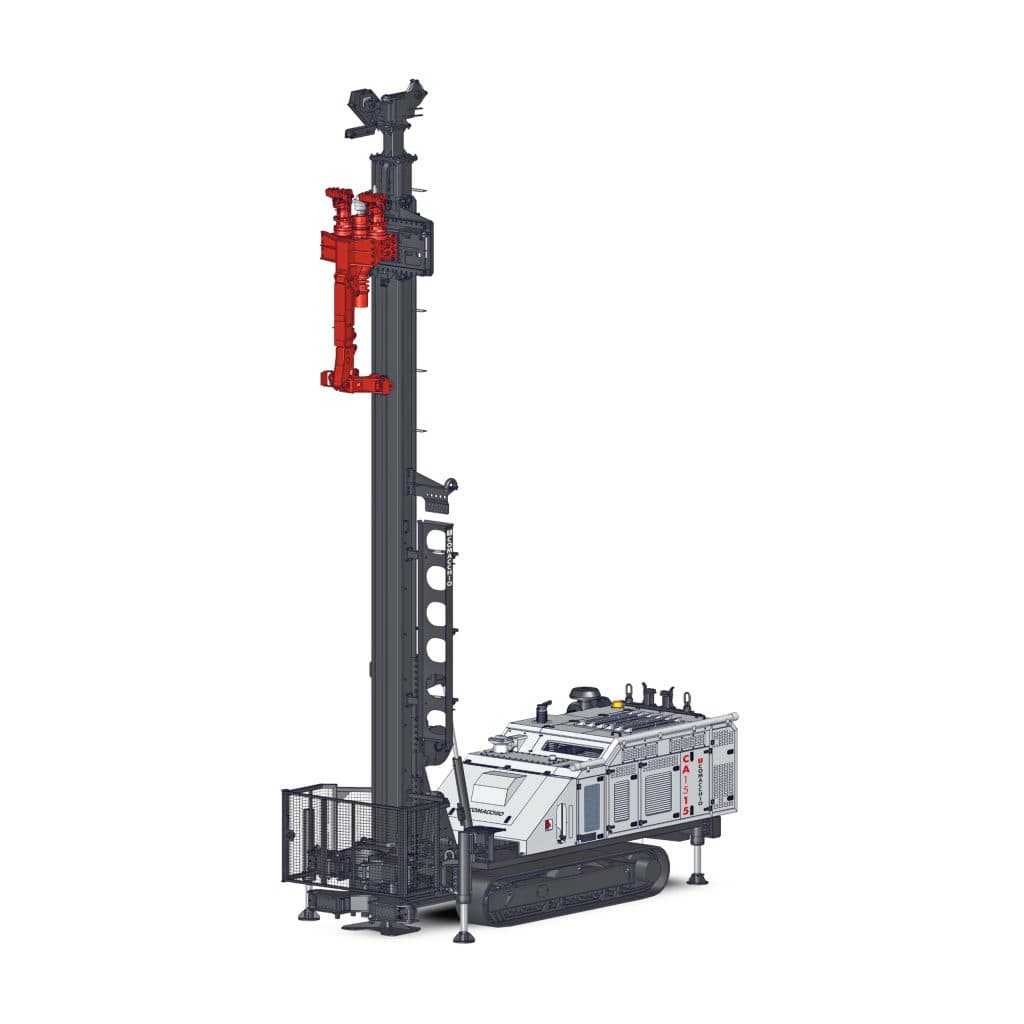

COMACCHIO CA 1515 Water Well Drill Rig
COMACCHIO CA 1515 is a water well drilling rig. Depending on the ground and equipment, it supports rotary drilling with direct water or mud circulation and down-the-hole drilling. Pumps, the rotary head and rod handling can be configured for the project.
The CA 1515 has the same pullback class as the CA 1415 but higher installed engine power. Its longer feed stroke supports the use of longer rod elements.
| Technical data | |
|---|---|
| Diesel engine power | 160 kW |
| Pullback force | 15,000 daN |
| Feed stroke | 6,500 mm |
| Torque range | 550–2,000 daNm |
| Clamping range | 75–435 mm |
Performance and dimensional ranges cover different versions. The drilling method, head and auxiliary equipment determine the specific machine configuration.
Detailed technical information can be found on the manufacturer’s product page.
