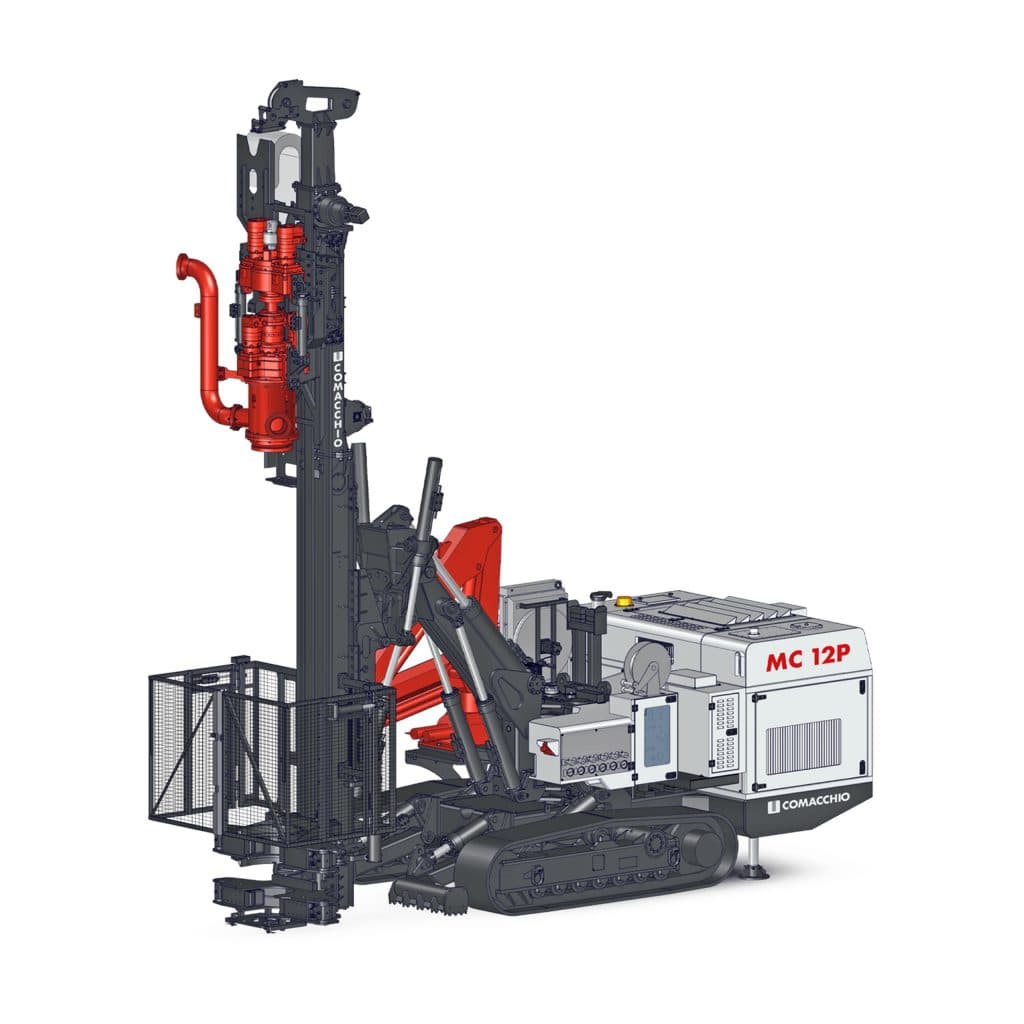

COMACCHIO MC 12P Multipurpose Micropile & Anchor Drilling Rig
The COMACCHIO MC 12P is a multipurpose drilling rig for rotary and rotary-percussion drilling in foundation and ground improvement works. It provides 140 kW engine power, 5,400 daN feed and retract force and can be configured with single- or dual-head drilling systems.
| Engine power | 140 kW |
| Feed force | 5,400 daN |
| Retract force | 5,400 daN |
| Feed stroke | 1,980–4,000 mm |
| Torque | 1,300–2,000 daNm |
| Speed | 170–290 rpm |
| Clamping range | 45–435 mm |
| Weight | 13–15 t |
Detailed technical information can be found on the manufacturer’s product page.
