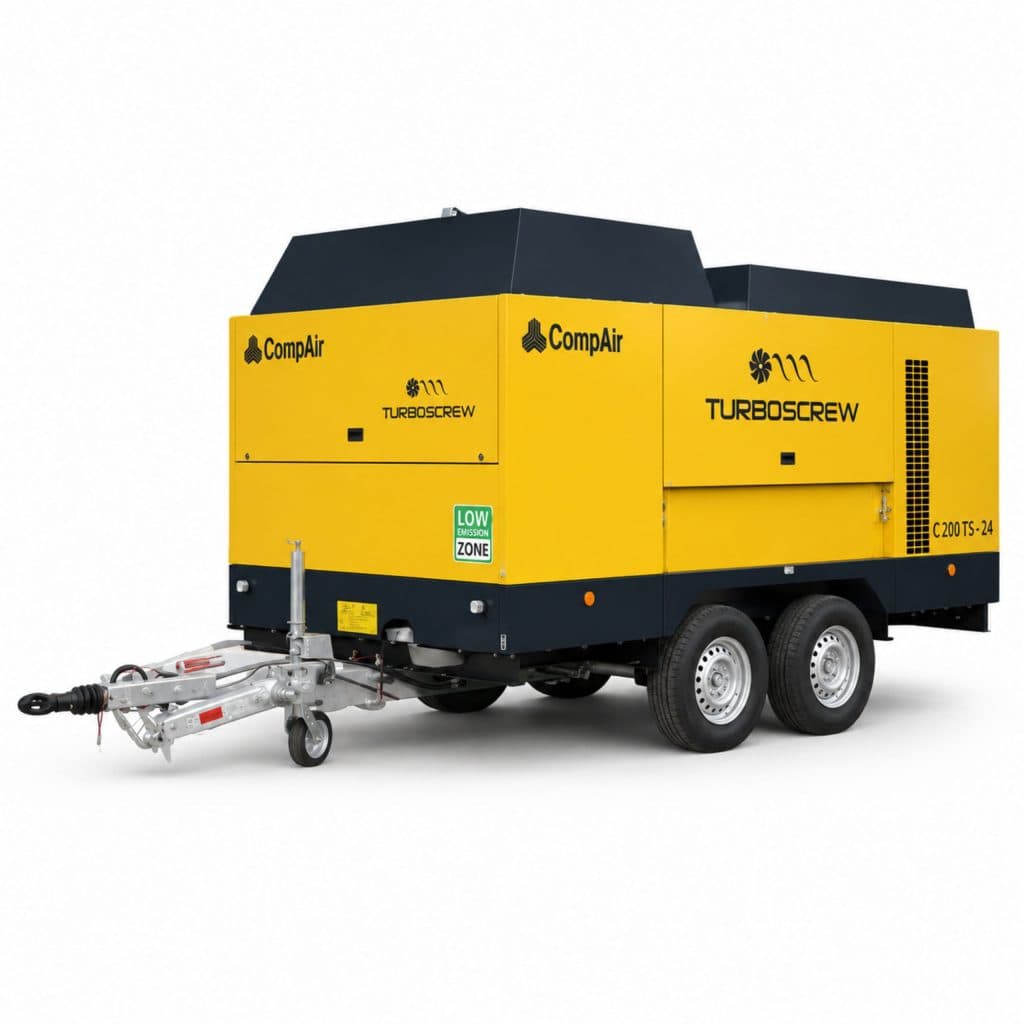

CompAir Portable Compressor C200TS-24
The CompAir C200TS-24 supplies compressed air for drilling in specialist foundation engineering, water well construction and geothermal projects. This portable screw compressor delivers 20 m³/min at an adjustable operating pressure of 14–24 bar.
The TurboScrew system uses an additional turbocharger to pre-compress the intake air before it enters the screw compressor stage. Power comes from a water-cooled, six-cylinder Cummins engine rated at 224 kW with SCRT exhaust aftertreatment.
| Technical data | CompAir C200TS-24 |
|---|---|
| Volume flow | 20.0 m³/min |
| Operating pressure | 14–24 bar |
| Engine | Cummins QSB6.7 + SCRT |
| Engine power | 224 kW |
| Cylinders | 6 |
| Cooling system | Water cooling |
| Fuel tank | 350 l |
| Compressed air outlet | 1 × 2″ |
| Sound pressure level at 7 m | 71 dB(A) |
Rent a high-pressure compressor
The CompAir C200TS-24 is available to rent from Knödlseder. Please tell us your preferred rental period, the required operating pressure and your air demand. We will check availability and match the compressed air supply to your requirements.
