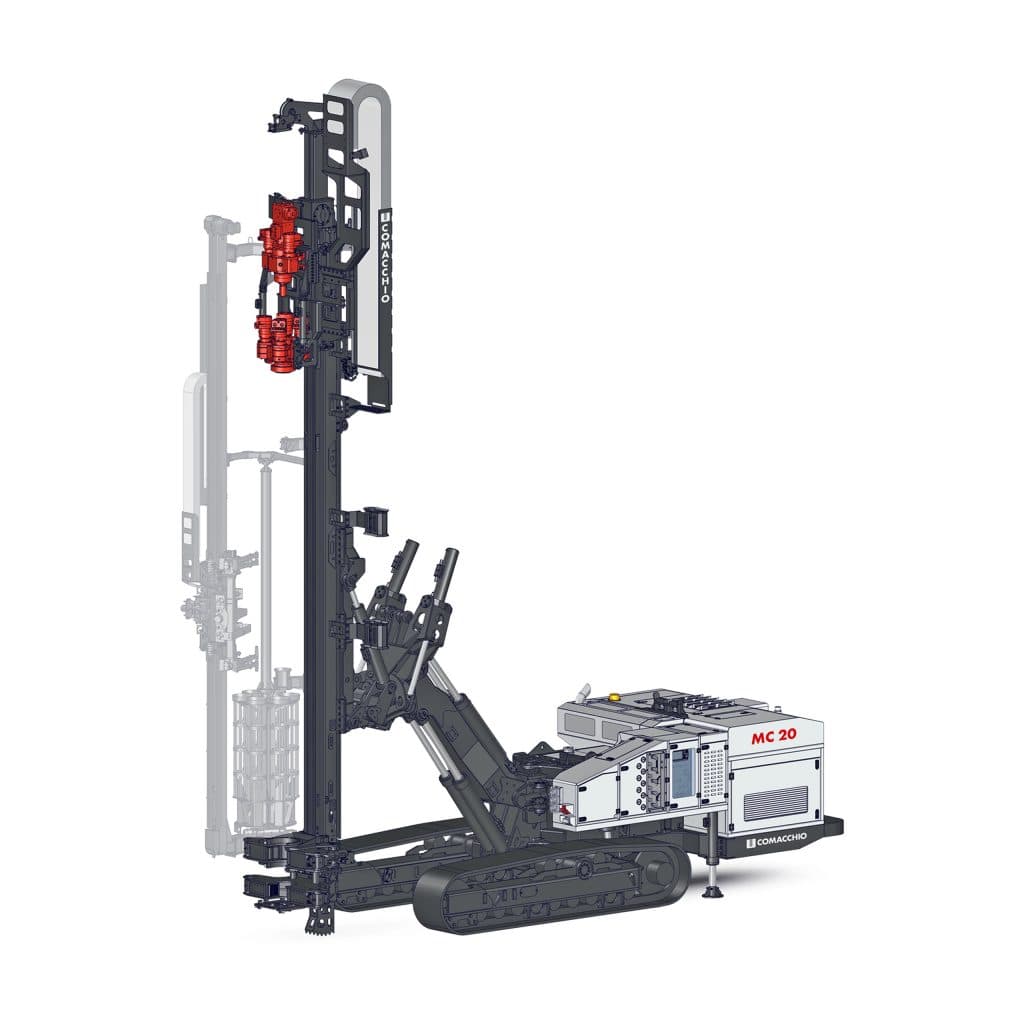

COMACCHIO MC 20 Multipurpose Micropile & Anchor Drilling Rig
The COMACCHIO MC 20 is a hydraulic drilling rig for micropiles, anchors, soil nailing and other foundation works. It provides 12,500 daN feed and retract force, a feed stroke of up to 7,000 mm and torque of up to 3,700 daNm.
| Engine power | 209 kW |
| Feed force | 12,500 daN |
| Retract force | 12,500 daN |
| Feed stroke | 5,600–7,000 mm |
| Torque | 2,050–3,700 daNm |
| Speed | 60–120 rpm |
| Clamping range | 45–435 mm |
| Weight | 20.5–22 t |
Detailed technical information can be found on the manufacturer’s product page.
